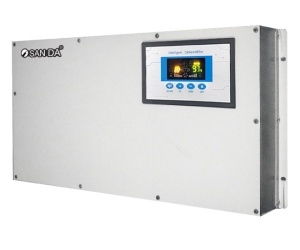

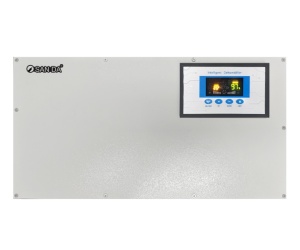

7L/Day Ultra-thin Dehumidifier for enclosure

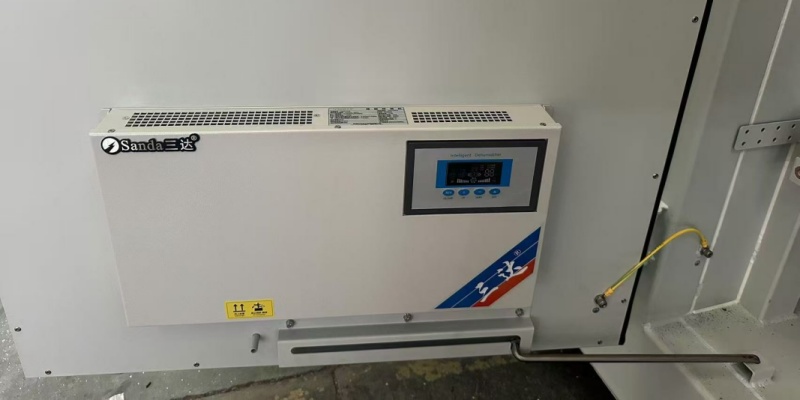

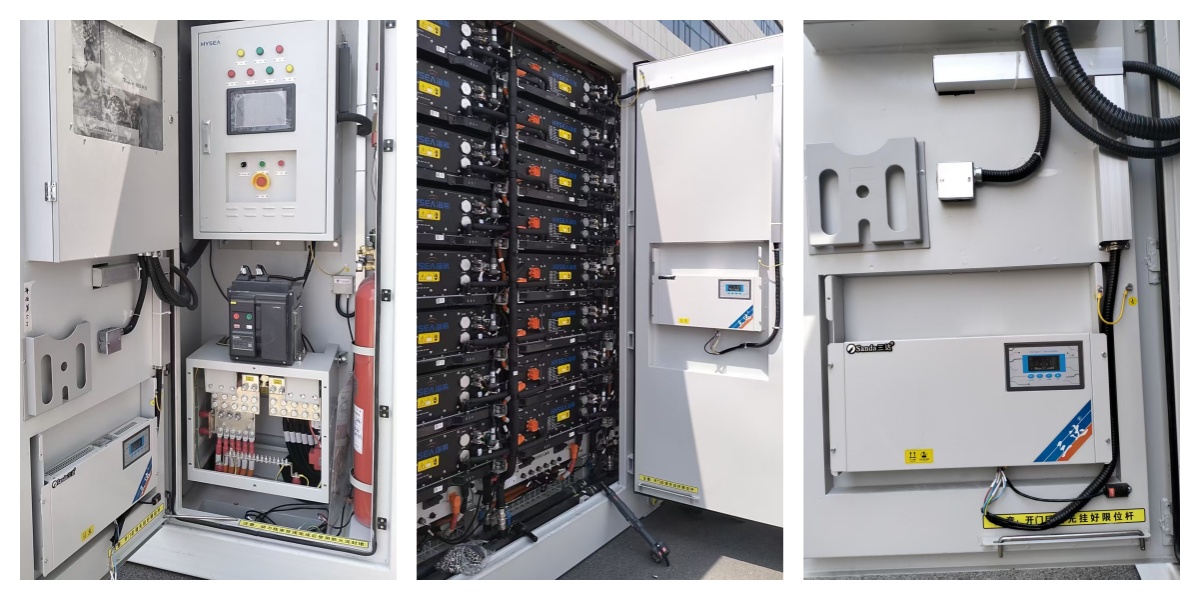

Sanda ultra-thin energy storage dehumidifier is specially designed for controlling the humidity in industrial cabinets.  It is particularly suitable for solving the  problem of condensation water easily generated in the liquid  cooling plate of the energy storage system using liquid cooling temperature control solution.
share to:


    Model No

    SDCS-7LA

    SDCS-7LD

    Power Supply

    AC220V±10%，50/60Hz

    DC24V±10%

    Rated Current

    0.7A

    5.0A

    Max Working Current

    1.0A

    7.0A

    Mounted Method

    Embedded/Door Mounted

    Dimensions(H*W*D)

    270*520*66.2mm（without flange）

    270*550*66.2mm（with flange）

    Weight

    8.0kg

    7.5kg

    Refrigerant

    R134a

    Circulating Airflow

    65m³/h

    Dehumidifying efficiency

    7L/D

    Rated Power（30℃/80%）

    140W

    130W

    Max Working Power

    220W

    200W

    Noise

    ＜70dB

    Communication Method

    RS485
