Sanda split type high temperature air conditioners are mainly used to cool down high temperature places such as driving cab, equipment operation room and electrical room, and can keep the indoor temperature between 18-35℃. This special air conditioner is a split type.
Split Type High Temperature Air Conditioner Features
1.Adopts Dakin/Panasonic etc well-known compressor, which is low noise and strong seismic resistance;
2. Adopting top-mounted installation, it does not occupy indoor space, which is beautiful and elegant, and has asmaller volume than other similar products;
3.Unique design with dust removal and maintenance free functions;
4. Flevel insulation for the fan, temperature resistance of 130°C, low noise, and vibration resistance;
5. The heat exchanger adopts high-efficiency heat exchange tubes with high heat exchange efficiency, and the evaporator fins use hydrophilic membranes;
6. The system is equipped with high and low voltage protection, and each motor is equipped with overload and thermal protection.
|

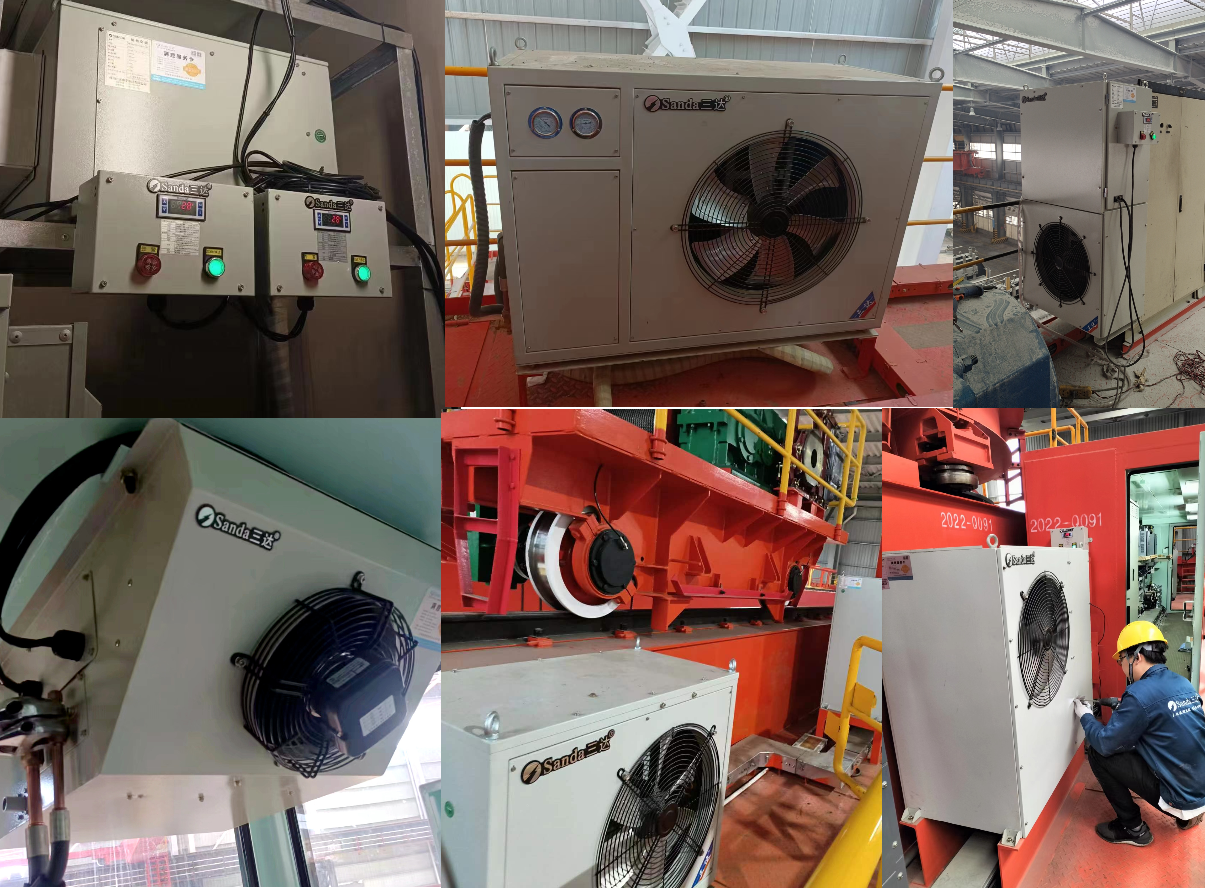

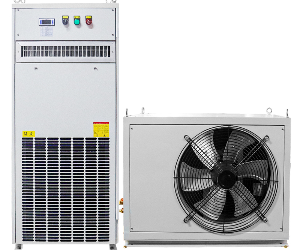

Split Type High Temperature Air Conditioners Show
|
|
Split Type High Temperature Air Conditioner Specifications
|
|
Model |
SDF(R)-40 |
SDF(R)-80 |
SDF(R)-120 |
|
Cooling Capacity |
4000W |
8000 |
12000 |
|
Cooling Consumption |
3500w |
4900 |
9148 |
|
Heating Consumption |
4000w |
4000 |
8000 |
|
Applied Temperature Range |
20-90℃ |
20-90℃ |
20-90℃ |
|
Rated Current |
7.2A |
14A |
18A |
|
Power Supply |
380V AC/50Hz |
380V AC/50Hz |
380V AC/50Hz |
|
Inner Circulation Airflow |
1200m³/h |
2000m³/h |
2000m³/h |
|
Refrigerant |
R134a |
R134a |
R134a |
|
Weight（Indoor unit） |
70kg |
100kg |
152kg |
|
Weight(Outdoor unit） |
130kg |
200kg |
240kg |
|
Dimensions（Indoor unit）L*W*D |
510*325*1200mm |
730*370*1400mm |
1665*750*410mm |
|
Dimensions(Outdoor unit）L*W*D |
900*480*800mm |
1300*600*950mm |
1225*1500*650mm |
