Sanda series DC2000W outdoor telecome cabinet air conditioners can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc;
Mounting Method：Side Mounting
Power Supply：-48VDC
Working Temperature Range：-40℃~+55℃
Power Consumption：720W@L35/L35
Max Noise Level 65dB(A)
IP Grade：IP55
Refrigerant：R134a
Dimensions：1116x416x225(mm,HxWxD)
|

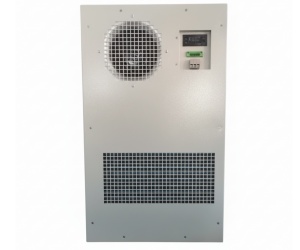

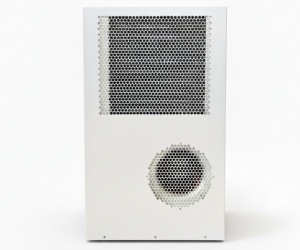

DC2000W Panel Air Conditioner Show |
|
DC2000W Panel Air Conditioner Specifications |
|
Model |
SDCA020/N/D/D |
Working Temperature Range |
-40℃~+55℃ |
|
Mounting Method |
Side Mounting |
Max Noise Level |
65dB(A) |
|
Power Supply |
-48VDC |
IP Grade |
IP55 |
|
Cooling Capacity |
2000W@L35/L35 |
Net Weight |
45kg |
|
Power Consumption |
720W@L35/L35 |
Refrigerant |
R134a |
|
Cooling Capacity |
1350W@L35/L55 |
Dimensions |
1116x416x225(mm,HxWxD) |
|
Power Consumption |
816W@L35/L55 |
CE |
YES |
|
Internal Airflow |
700 m³/h |
Heater |
Optional(500W) |
|
Surface Treatment |
Outdoor type powder coating,standard color: RAL7035 |
||
Tips: All specifications for reference only, please confirm with us before placing orders.
