SDCS series intelligent cabinet dehumidifier device adopts semiconductor cooling dehumidify mode, under the effect of the fan, initiative make the moist air which in the confined spaces inhaled to the dehumidified air-duct, after through the semiconductor cooling mechanism, the moisture of the air condenses into the water, and then discharge from cabinet through the drain line, can achieve a good dehumidification effect.
1. Smart function with RS485 interface

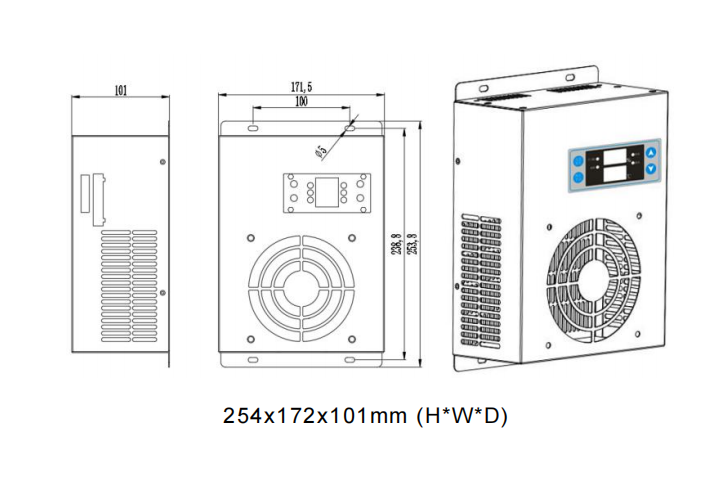

2. Smaller size 168×101×223mm
3. Stonger dehumidifier capacity 850mL/Day
4. LED Display
5. Can be customized
Heating power: 50~500W
Working power：80W
Humidity measuring range：20%～98%RH
Dehumidifying efficiency: 850ml/day
(under the working conditions of 60W 35℃ RH=80% )
Dehumidify temperature: 5～45℃
Temperature measuring range:-25~125℃
Temperature start value: 1～55℃ (Default setting 8℃)
Temperature measuring accuracy: ±0.5℃
|
Intelligent Dehumidifier Features |
The SANDA Thermoelectric Dehumidifier removes moisture from the air within an enclosure, providing an inexpensive yet highly effective way to protect electronic and electrical components from condensation. It can be used in mild steel, aluminum, stainless steel and nonmetallic enclosures. It also reduces corrosion that can limit the life of internal electrical and electronic components. Condenses moisture from internal enclosure air and standing liquids.
|
Intelligent Dehumidifier Show |
|
Intelligent Dehumidifier Specifications |
|
Data Name |
Techinical Data |
Data Name |
Techinical Data |
|
Working power |
90～240VAC |
Dehumidifying efficiency |
850ml/day(under the working conditions of 60W 35℃ RH=80%) |
|
Heating Power |
50～500W |
Dehumidifying temperature |
5℃～45℃ |
|
Power |
100W,120W |
Working temperature |
-25℃～85℃ |
|
Humidity detection range |
20%RH～98%RH |
Temperature detection range |
-25℃～125℃ |
|
Dehumidify start value |
45%RH～98%RH(Default setting65%RH) |
Temperature start value |
1℃～55℃(Default setting 8℃) |
|
Humidity measuring accuracy |
±3%RH |
Temperature measuring accuracy |
±0.5℃ |
|
Display method |
Double 3 digit display |
Display Resolution |
0.1 |
|
Shell material |
Stainless steel |
Dimensions |
168×101×223mm |
|
Net Weight |
2.8kg |
Drain line |
silica gel D10mm、L1.5m |
Tips: All specifications for reference only, please confirm with us before placing orders.
