SANDA's 150 W DC solid state TEC air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments.
|
Tec Air Conditioner Features |
• Extremely reliable solid state construction with long lifespan
• Maintenance free design with no moving components (other than fans)
• Compact size, lightweight, convenient to install and operate
• Construction (Type 304 stainless steel) for indoor or outdoor use
• Standard models to 55°C (High ambient models avail.)
• Flush-mount or recessed-mount installation
• Recommended for vertical mounting only
|

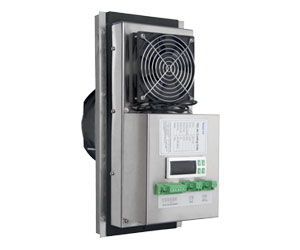

TEC Air Conditioner Show |
|
TEC Air Conditioner Specification |
|
Model No. |
SDC2-150 |
Weight |
9kg |
|
Cooling capacity |
150W(512BTU/HR) |
Heating capacity |
150W |
|
Rating |
IP55 |
Construction |
Stainless Steel (covers) |
|
Size(H*W*D) |
400*240*180mm |
Cooling/Heating |
Cooling and heating |
|
Mounting size |
body350*150mm |
intelligent exchanging |
|
|
Internal circulation air flow rate(m³/h) |
360 |
External circulation air flow rate(m³/h) |
640 |
|
Working temp range(℃) |
-20-55℃ |
Working humidity range(RH) |
10%-95% |
|
power |
48 VDC @ 8.5AMPS |
Noise |
60dB(A) |
|
TEC Air Conditioner VS Peltier Air Cooler |
|
TEC Air Conditioner Perfomance Chart |
|
TEC Air Conditioner Working Principle |
Tips: All specifications for reference only, please confirm with us before placing orders.
