SANDA's 400 W DC solid state air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooler is designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in DC power configurations. Coolers feature corrosion-resistant stainless steel construction. All are available with a variety of options.
|

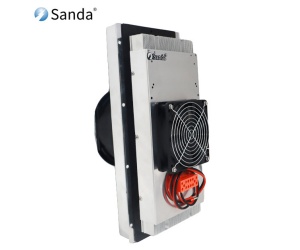

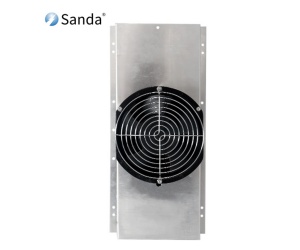

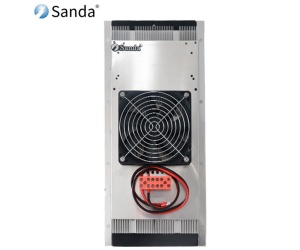

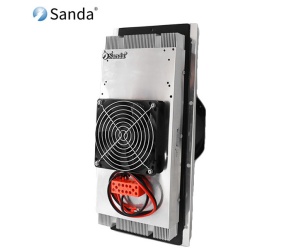

DC48V 400W Peltier Air Cooler Show |
|
DC48V 400W Peltier Air Cooler Specifications |
|
Model No. |
SD-400-48 |
power |
48 VDC @ 13.6 AMPS |
|
Cooling capacity |
400W (1364 BTU/HR) |
Type |
Embedded mount |
|

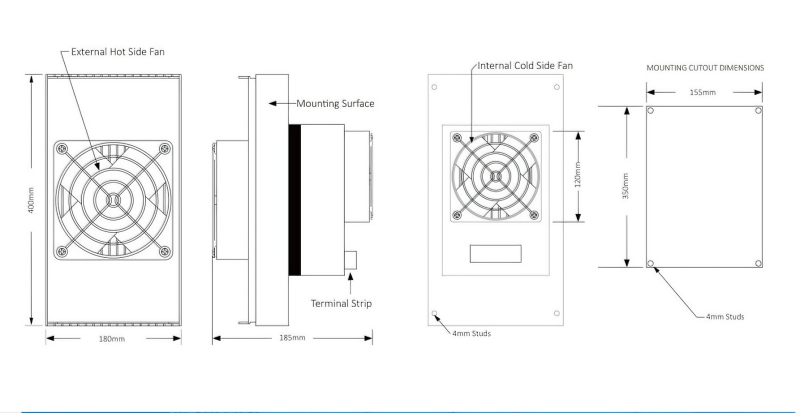

Size(H*W*D) |
400*180*185mm body |
Material |
Aluminum Alloy(covers) |
|
(H*W*D) |
350*155mm mouting size |
Weight |
7.5kg |
|
Rating |
IP55 |
Operating Range |
up to 50 degrees C(high ambient models available) |
|
Rated Power |
720W |
CE |
YES |
|
Temperature Control |
Adjustable thermostat |
Warranty |
12 months |
|

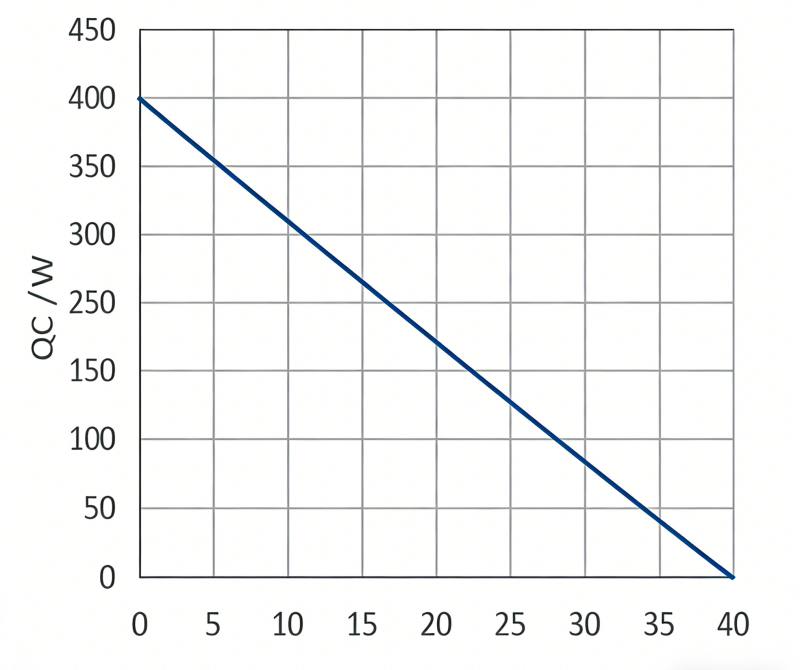

DC48V 400W Peltier Air Cooler Performance Chart |
|
Peltier Air Cooler Working Principle |
