Sanda AC220V 500W Indoor Panel Air Conditioner can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc
Ø Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
Ø Strict process control and famous brand components to ensure high quality and reliability of this product;
Ø Fit for harsh condition (T3), R134a refrigerant ;
Ø Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol);
Ø LED display, all the settings can changed at the field;
Ø The heating function and the hydrogen function is optional;
|

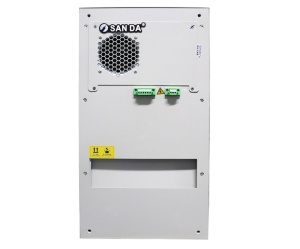

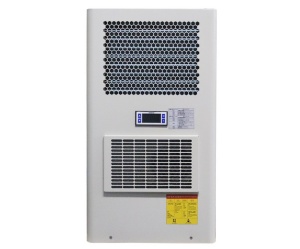

500W Indoor Panel Air Conditioner Show |
|
500W Indoor Panel Air Conditioner Specifications |
Model
SD13.052
Mounting Method
External Mounting
Power Supply
230VAC 50/60Hz
Power Consumption
240W@L35/L35
Cooling Capacity
500W@L35/L35
Power Consumption
290W@L35/L55
Cooling Capacity
320W@L35/L55
Internal Airflow
120m³/h
Working Temp Range
-40℃~+55℃
Max Noise Level
60dB(A)
IP Grade
IP55
Net Weight
15kg
Refrigerant
R134a
CE
YES
Dimensions(H*W*D)
570x310x175(mm,HxWxD)
Heater
500w(optional)
Surface Treatment
Outdoor type powder coating, standard color: RAL7035
|
500W Indoor Panel Air Conditioner Performance Chart |
|
500W Indoor Panel Air Conditioner Product Dimensions |
