Voltage(v):220
Roating speed(r/min):1,400
Phase:Single
Current(A):0.41
Blowing type:Top/Side blowing
Air delivery(M³/h):1500

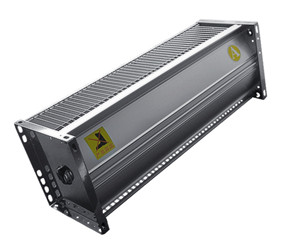

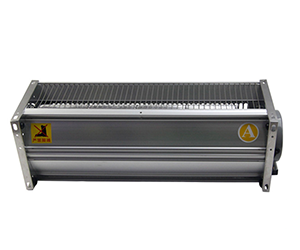

Cross-flow Cooling Fan Description
110 volt cooling fan Features:

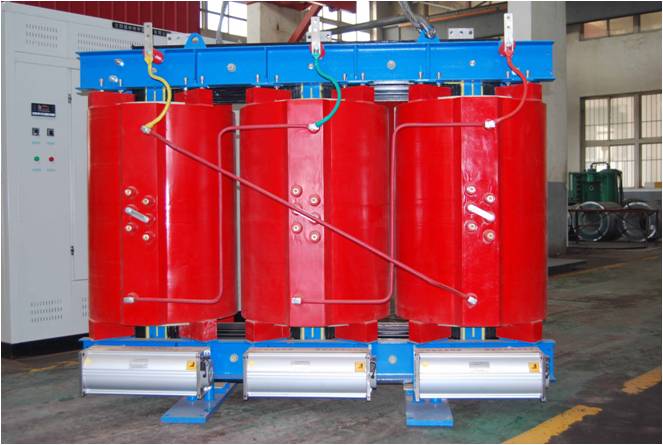

- Large air flow allows the dry-type transformer to fully dissipate heat, increasing 45% -60% of capacity.
- Various types of cooling fans are upon customers’ request. Cooling fans vary from impeller diameter, airflow entry, and enclosure material. There are top and side blows for the cooling fans. Aluminum alloy and stainless steel enclosure is optional.
- The airflow is blown into air duct of high and low voltage winding of transformers and that of winding and iron core at certain angle (45-60 ° horizontal sextant angle, which greatly increase the effective airflow for heat dissipation.
- Compact structure of 110 volt cooling fan, elegant appearance and easy installation.
- The enclosure adopts imported stainless steel shell or high-quality aluminum alloy profiles. Fasteners are made of stainless steel with strong corrosion resistance, suitable for humid service condition.
- Airflow entry and exit ducts are equipped with protective mesh door to ensure safe and reliable operation.
|

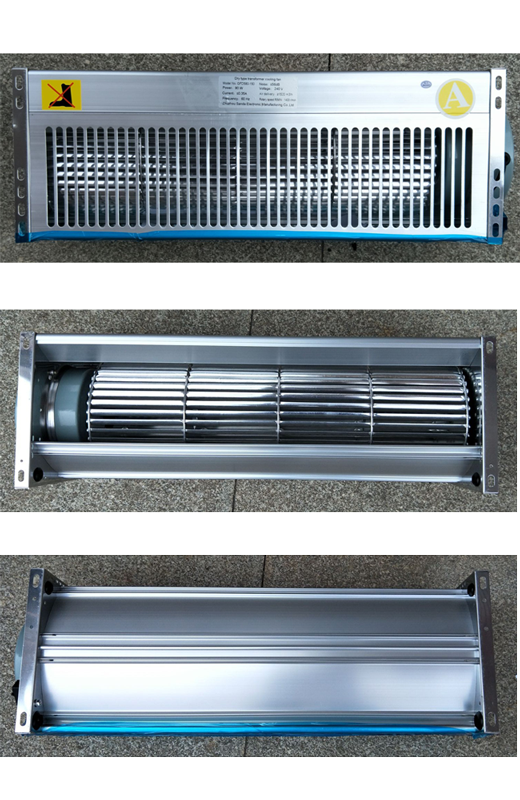

Cross-flow Cooling Fan Show |
|
Cross-flow Cooling Fan Specification |
|
Model Number: |
GFD590-150 |
Phase |
Single |
|
Voltage(v) |
220 |
Current(A) |
0.41 |
|
Roating speed(r/min) |
1,400 |
Frequency(Hz) |
50 |
|
Power(w) |
90 |
Blowing type |
Top/Side blowing |
|
Air delivery(M³/h) |
1500 |
||
Tips: All specifications for reference only, please confirm with us before placing orders.
|

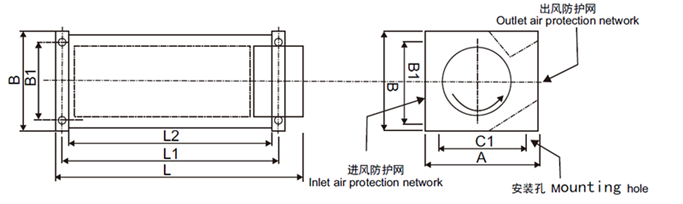

———————————————Dimension and mounting size ——————————————————— |
|
Model Number: |
Phase |
Voltage(v) |
Current(A) |
Roating speed(r/min) |
Frequency(Hz) |
Power(w) |
Blowing type |
Air delivery(M³/h) |
|
GFD470-150 |
Single |
220 |
0.36 |
1,300 |
50 |
60 |
Side/Top blowing |
1300 |
|
GFD590-150 |
Single |
220 |
0.41 |
1,400 |
50 |
90 |
Side/Top blowing |
1500 |
