AC series cabinet air conditioner is a kind of temperature control Equipment applied to cabinets with relatively concentrated heat source. It effectively solve the cabinet heating problem with the advantages of short air duct and uniform air-out. It is the first choice model for the communication industry outdoor base station.
Cooling capacity range: 300W to 4000W
Fit for harsh condition(T3)
LED display, all the settings can be changed at the field.
Anti-theft design
Heating and hydrogen function is optional
Cooling Capacity: 3160W@L35/L35
Cooling Capacity: 2300W@L35/L55
Internal Airflow: 720m³/h
Max Noise Level:65dB(A)
Power Consumption: 1430W@L35/L35
Power Consumption: 1720W@L35/L55
Working temperature Range: -40℃- 55℃
IP Grade: IP55
Net Weight: 50Kg
Dimensions(mm):1154×489×225（HWD）
Power Supply: 230VAC±15% 50Hz/60Hz
Heater: Optional(1000W)
Hydrogen Function: Optional
|

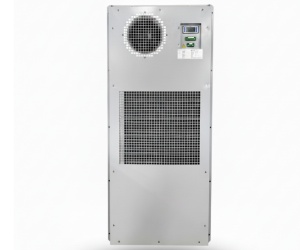

Cabinet Air Conditioner Show |
|
Cabinet Air Conditioner Specifications |
|
Model No. |
SDCA-030N/D/A |
Mounting Method |
Semi-embedded Mounting |
|
Cooling Capacity |
3160W@L35/L35 |
Power Consumption |
1430W@L35/L35 |
|
Cooling Capacity |
2300W@L35/L55 |
Power Consumption |
1720W@L35/L55 |
|
Internal Airflow |
720m³/h |
Working temperature Range |
-40℃- 55℃ |
|
Max Noise Level |
65dB(A) |
IP Grade |
IP55 |
|
Net Weight |
50Kg |
Refrigerant |
R134a |
|
Dimensions(mm) |
1154×489×225（HWD） |
Power Supply |
230VAC±15% 50Hz/60Hz |
|
Heater |
Optional(1000W) |
Hydrogen Function |
Optional |
|
Surface treatment |
Outdoor type powder coating, standard color: RAL7035 |
||
|
Cabinet Air Conditioner Performance Chart |
Tips: All specifications for reference only, please confirm with us before placing orders.
