In order to provide temperature solutions for communications, with the world’s advanced technology and rapid development, meet the increasingly stringent reliability requirements. Create a cool, dry and safe environment for the operation of equipment and electrical.
Cabinet air conditioner is widely used in outdoor communication cabinets, electrical cabinets, industrial cabinets and other occasions need heat dissipation.
*Fit for harsh condition (T3), R134a refrigerant ;
*Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
*LED display, all the settings can changed at the field;
*The heating function is optional; Anti-theft design, without the protection cover.
*Dry contact alarm output, NO/NC optional;
Model No.: SDCA-006N/D/A
Cooling Capacity:600W@L35/L35
Cooling Capacity:360W@L35/L55
Internal Airflow:120m³/h
Max Noise Level:60dB(A)
IP Grade:IP55
Power Consumption:260W@L35/L35
Power Consumption:310W@L35/L55
Working temperature Range:-40℃- 55℃
Net Weight:15Kg
Refrigerant:R134a
Dimensions(mm):550×320×175（HWD）
Power Supply:230VAC±15% 50Hz/60Hz
Heater:Optional(500W)
Hydrogen Function:OptionalMounting Method:Semi-embedded Mounting
|
Cabinet Air Conditioner Description |
Telecom cabinet air conditioner is different from the traditional commercial and household air conditioning. With extremely high SEER, moisture condensation active control and other cut-edge technologies, it protects power and electronic equipment by providing precise temperature and humidity control. Since the product design and installation are originated from household air conditioners, it can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. SANDA provides the DC and AC panel air conditioner power input type products according different power input.
|

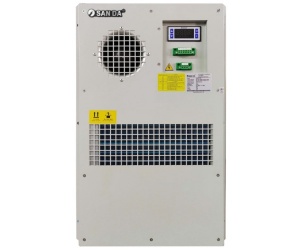

Cabinet Air Conditioner Show |
|
Cabinet Air Conditioner Specification |
|
Model No. |
SDCA-006N/D/A |
Mounting Method |
Semi-embedded Mounting |
|
Cooling Capacity |
600W@L35/L35 |
Power Consumption |
260W@L35/L35 |
|
Cooling Capacity |
360W@L35/L55 |
Power Consumption |
310W@L35/L55 |
|
Internal Airflow |
125m³/h |
Working temperature Range |
-40℃- 55℃ |
|
Max Noise Level |
60dB(A) |
IP Grade |
IP55 |
|
Net Weight |
15Kg |
Refrigerant |
R134a |
|
Dimensions(mm) |
550×320×175（HWD） |
Power Supply |
230VAC±15% 50Hz/60Hz |
|
Heater |
Optional(500W) |
Hydrogen Function |
Optional |
|
Surface treatment |
Outdoor type powder coating, standard color: RAL7035 |
||
|
Cabinet Air Conditioner Performance Chart |
Tips: All specifications for reference only, please confirm with us before placing orders.
