In order to provide temperature solutions for communications, with the world’s advanced technology and rapid development, meet the increasingly stringent reliability requirements. Create a cool, dry and safe environment for the operation of equipment and electrical.
Cabinet air conditioner is widely used in outdoor communication cabinets, electrical cabinets, industrial cabinets and other occasions need heat dissipation.
*Cooling capacity range: 300W to 4000W;
*Fit for harsh condition(T3);
*LED display, all the settings can changed at the field;
*Heating and hydrogen function is optional;
*Environmental friendly refrigerant R134a.
Model No.:SDCA-003N/D/A
Cooling Capacity: 300W@L35/L35
Cooling Capacity: 190W@L35/L55
Internal Airflow: 100m³/h
Max Noise Level: 60dB(A)
Mounting Method: Semi-embedded Mounting
Power Consumption: 170W@L35/L35
Power Consumption: 230W@L35/L55
Working temperature Range:-40℃- 55℃
IP Grade: IP55
Dimensions(mm):550×320×175（HWD）
Heater: Optional(500W)
Refrigerant: R134a
Power Supply:230VAC±15% 50Hz/60Hz
Net Weight: 14Kg
|
Cabinet Air Conditioner Description |
AC powered cabinet air conditioner Features
* Remote measuring, remote communication&control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* The heating function is optional;
* Dry contact alarm output, NO/NC optional;
* Anti-theft design, without the protection cover.
|

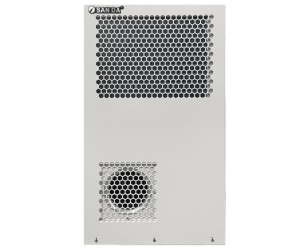

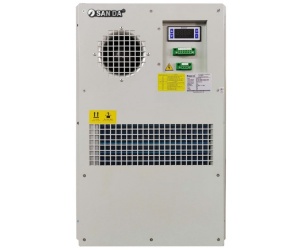

Cabinet Air Conditioner Show |
|
Cabinet Air Conditioner Specifications |
|
Model No. |
SDCA-003N/D/A |
Mounting Method |
Semi-embedded Mounting |
|
Cooling Capacity |
300W@L35/L35 |
Power Consumption |
170W@L35/L35 |
|
Cooling Capacity |
190W@L35/L55 |
Power Consumption |
200W@L35/L55 |
|
Internal Airflow |
120m³/h |
Working temperature Range |
-40℃- 55℃ |
|
Max Noise Level |
60dB(A) |
IP Grade |
IP55 |
|
Net Weight |
15Kg |
Refrigerant |
R134a |
|
Dimensions(mm) |
550×320×175（HWD） |
Power Supply |
230VAC±15% 50Hz/60Hz |
|
Heater |
Optional(500W) |
Hydrogen Function |
Optional |
|
Surface treatment |
Outdoor type powder coating, standard color: RAL7035 |
||
|
Cabinet Air Conditioner Perfomance Chart |
Tips: All specifications for reference only, please confirm with us before placing orders.
