SDCS series intelligent dehumidifier device adopts semiconductor cooling dehumidify mode, under the effect of the fan, initiative make the moist air which in the confined spaces inhaled to the dehumidified air-duct, after through the semiconductor cooling mechanism, the moisture of the air condenses into the water, and then discharge from cabinet through the drain line, can achieve a good dehumidification effect.
1. Smart function with RS485 interface
2. Smaller size 130×60×243mm
3. Stonger dehumidifier capacity 450mL/Day
4. LED Display
5. Can be customized
Dehumidifying efficiency:450ml/day(under the working conditions of 60W 35℃ RH=80%)
Heating Power:50～500W
Dehumidifying temperature:5℃～45℃
Power:30W,40W,60W
Humidity detection range:20%RH～98%RH
Temperature detection range: -25℃～125℃
Dehumidify start value:45%RH～98%RH(Default setting65%RH)
Temperature start value:1℃～55℃(Default setting 8℃)
Humidity measuring accuracy:±3%RHDisplay method:Double 3 digit display
Display Resolution:0.1
Shell material:Sheet Metal
Dimensions:130×60×243mm
Net Weight:1.44kg
|
Intelligent Dehumidifier Features |
1. Smart Industrial Dehumidifier is small volume, light weight, convenient installation.
2. Automatic operation and manual dehumidfication function switch, temperature adjustable start value and dehumidification start value.
3. Dehumidification air duct setting and exhaust gas heat wet, effictively reach for electrical cabinet closed space moistureproof dehumidification comprehensive treatment.
4. Humidity, temperature sensor, 24 hours real-time sampling, exceeds the start value automatically setting.
5. Using special mositureproof element, shell adopts aluminum structure, guarantee the normal work in a damp environment
|

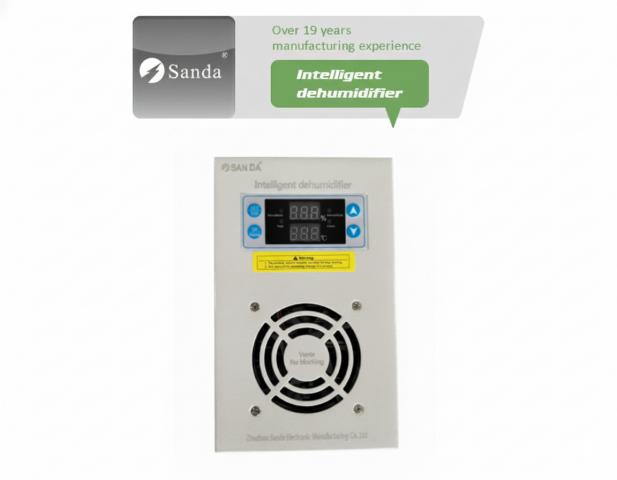

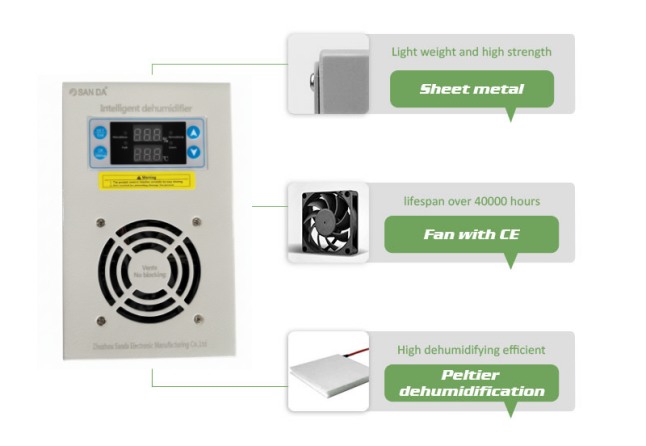

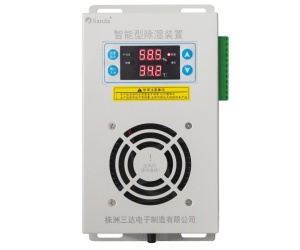

Intelligent Dehumidifier Show |
|
Intelligent Dehumidifier Specifications |
|
Data Name |
Techinical Data |
Data Name |
Techinical Data |
|
Working power |
AC220V |
Dehumidifying efficiency |
450ml/day(under the working conditions of 60W 35℃ RH=80%) |
|
Heating Power |
50～500W |
Dehumidifying temperature |
5℃～45℃ |
|
Power |
30W,40W,60W |
Working temperature |
-25℃～85℃ |
|
Humidity detection range |
20%RH～98%RH |
Temperature detection range |
-25℃～125℃ |
|
Dehumidify start value |
45%RH～98%RH(Default setting65%RH) |
Temperature start value |
1℃～55℃(Default setting 8℃) |
|
Humidity measuring accuracy |
±3%RH |
Temperature measuring accuracy |
±0.5℃ |
|
Display method |
Double 3 digit display |
Display Resolution |
0.1 |
|
Shell material |
Sheet Metal |
Dimensions |
130×60×243mm |
Tips: All specifications for reference only, please confirm with us before placing orders.
